Create a new model

Before doing anything, it's important to understand that many components in the product are scopped by model. It is one of the segregation unit available to split the application content.

You can refer to the dedicated section Model settings for more informations.

Settings

Now, let's create a new model named breakdown with the following fields :

  • String id
  • String level
  • Datetime date
  • String component

We want to keep 30 days of data history, with a daily index rotation :

  • Cron expression : 0 0 * * * (Rotate the index once per day at midnight)
  • Activate purge : true (Purge indices after a specific period of time)
  • Indices rention before purge : 30 (days)
  • Patch alias indices : 1 (days)

Result

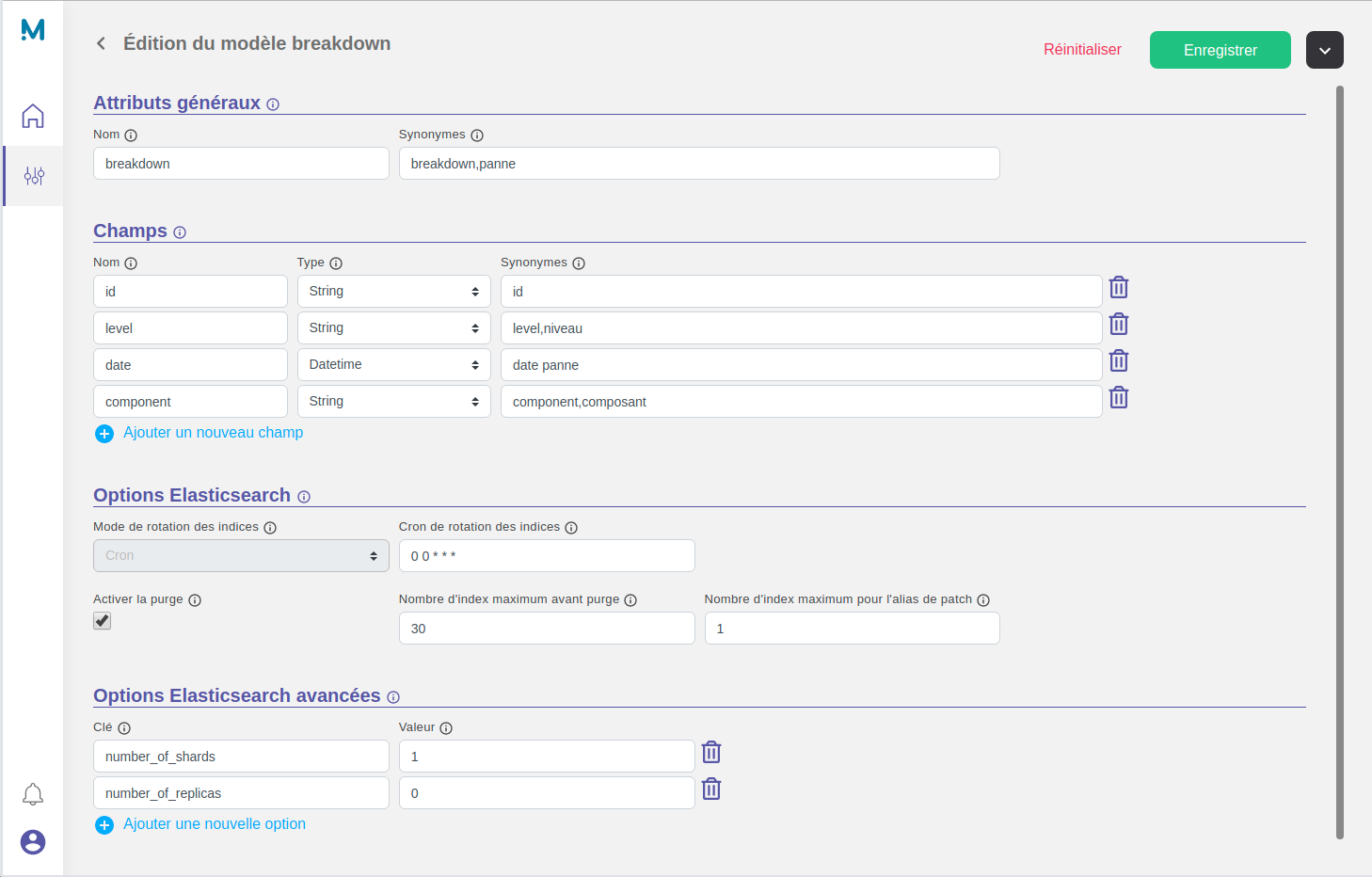

Breakdown Model

Want to use the JSON API ?

json tab="POST /api/v4/modeler/models" { "name": "breakdown", "synonyms": [ "breakdown", "panne" ], "fields": [ { "name": "id", "type": "string", "synonyms": [ "id" ] }, { "name": "level", "type": "string", "synonyms": [ "level", "niveau" ] }, { "name": "date", "type": "datetime", "synonyms": [ "date panne" ] }, { "name": "component", "type": "string", "synonyms": [ "component", "composant" ] } ], "elasticsearchOptions": { "rollmode": "cron", "rollcron": "0 0 * * *", "enablePurge": true, "purgeMaxConcurrentIndices": 30, "patchAliasMaxIndices": 1, "advancedSettings": { "number_of_replicas": "0", "number_of_shards": "1" } } }
